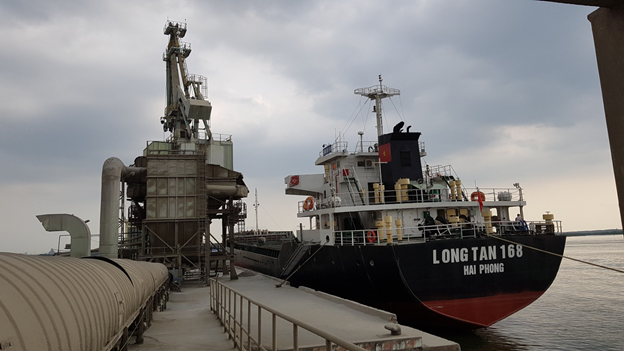

PROVIDE THE BACKUP INVERTER FOR CRANE AT THE PORT OF CEMENT PLANT
Owner: Cam Pha Cement Grinding Plant
Location: My Xuan, Tan Thanh, Ba Ria-Vung Tau, Vietnam
System description:
TLC provided the solution of backup Inverter and Control/Automation systems for import crane at the port of Cam Pha Cement Grinding Plant
TLC executed the works while the existing systems are in normal operation, the installation, testing and commissioning works had been carried out in limited time, required precise co-operation skills.
TLC SOLUTION
1. Hoisting gear
- Hoisting gear M01): type K22F 355L 4B FBI HB IGR IL LL NSPTTWS HW (VEM)
- Motor: Rated power: 500kw-380vac-50hz-1490rpm-994A-2 poles
- Cable length: 25m
- Roller dimension: 1250mm
- Lifting cable’s dimension: 44mm
- Motor drive: Inverter, build in panels
2. Control systems
- PLC: S7-400
- Inverter: ABB
- Power cables, control cables, cable connection systems
Below pictures are taken during execution of project:

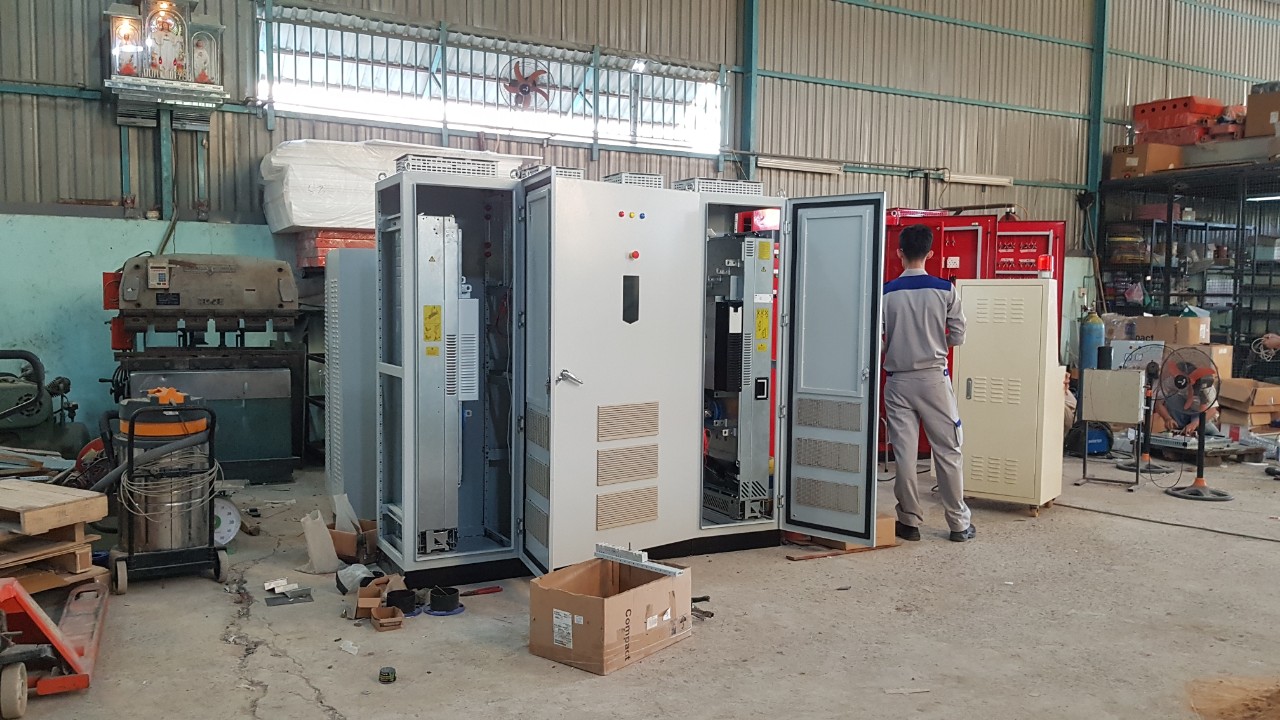

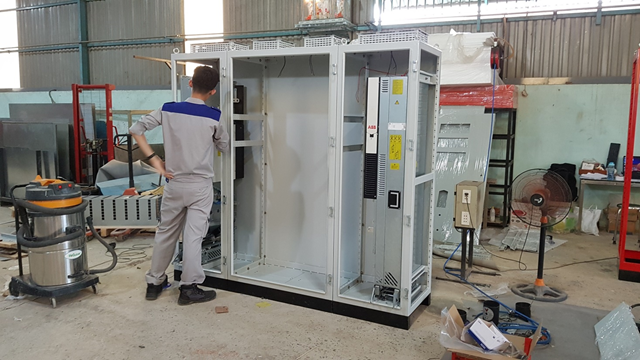

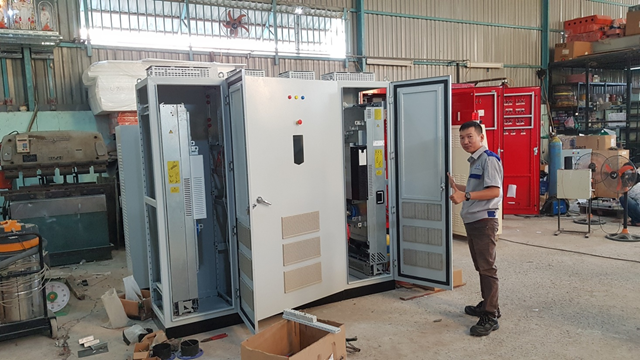

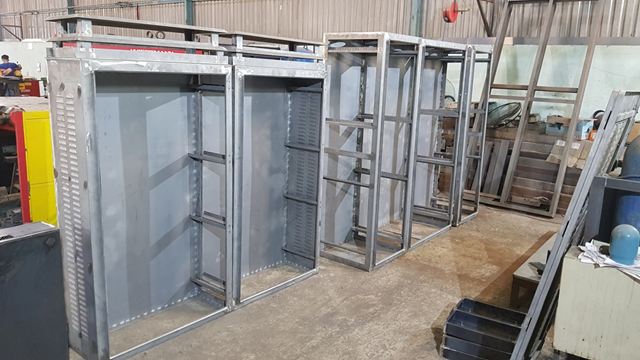

Design and build Inveter panels at workshop
.jpg)

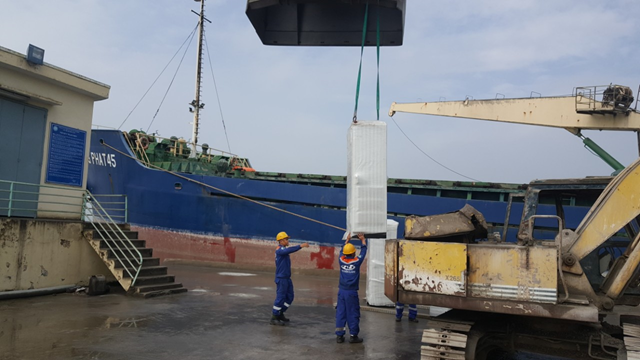

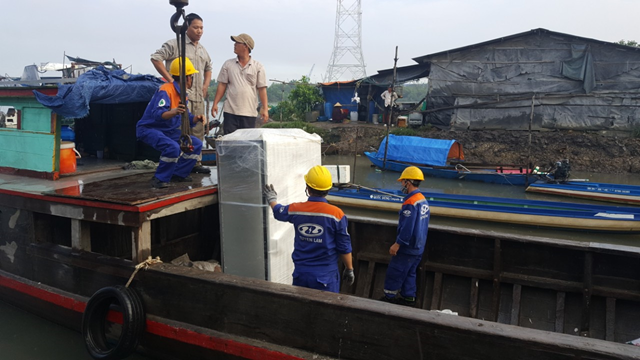

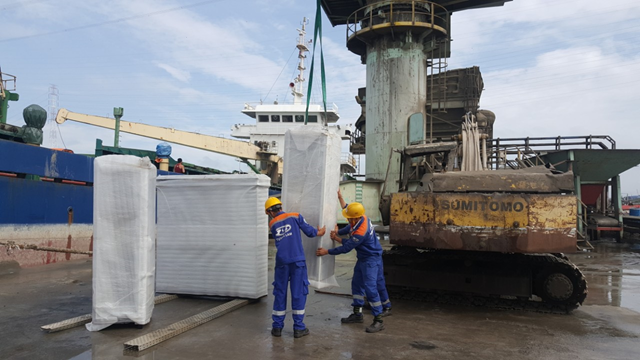

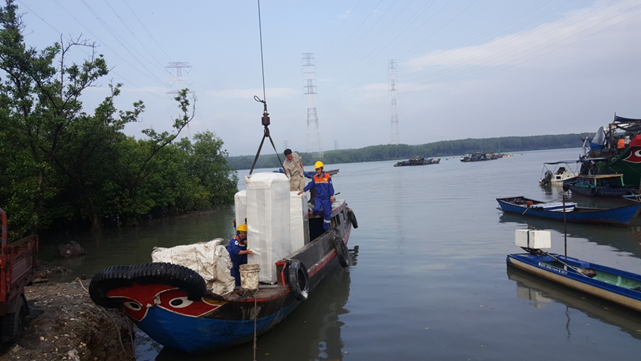

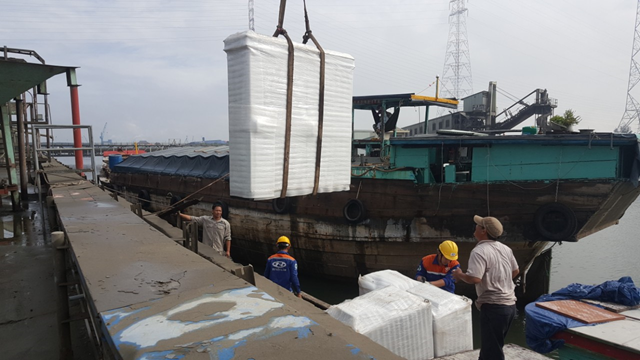

Transpport Inveter panel to installing position

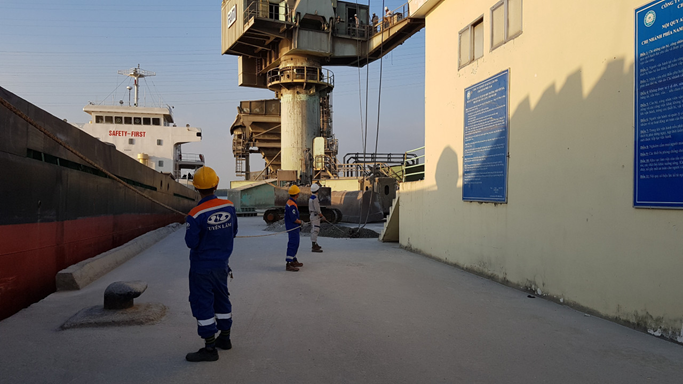

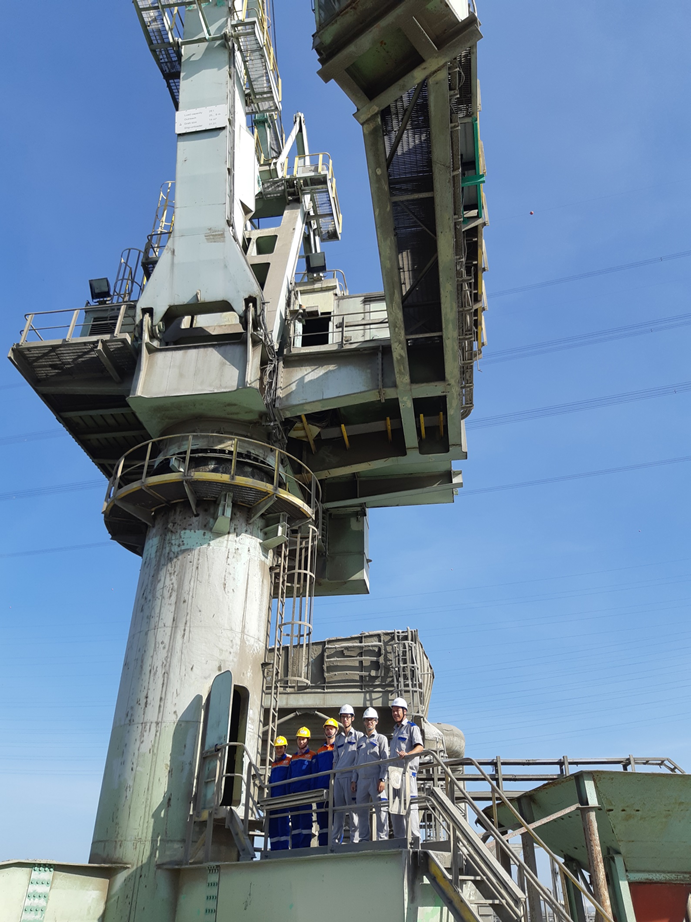

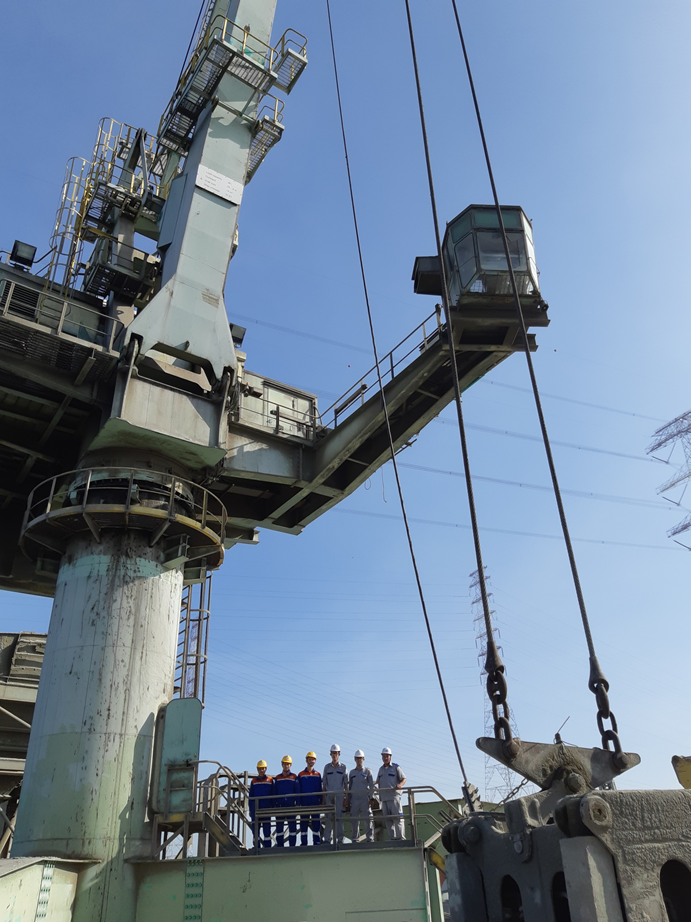

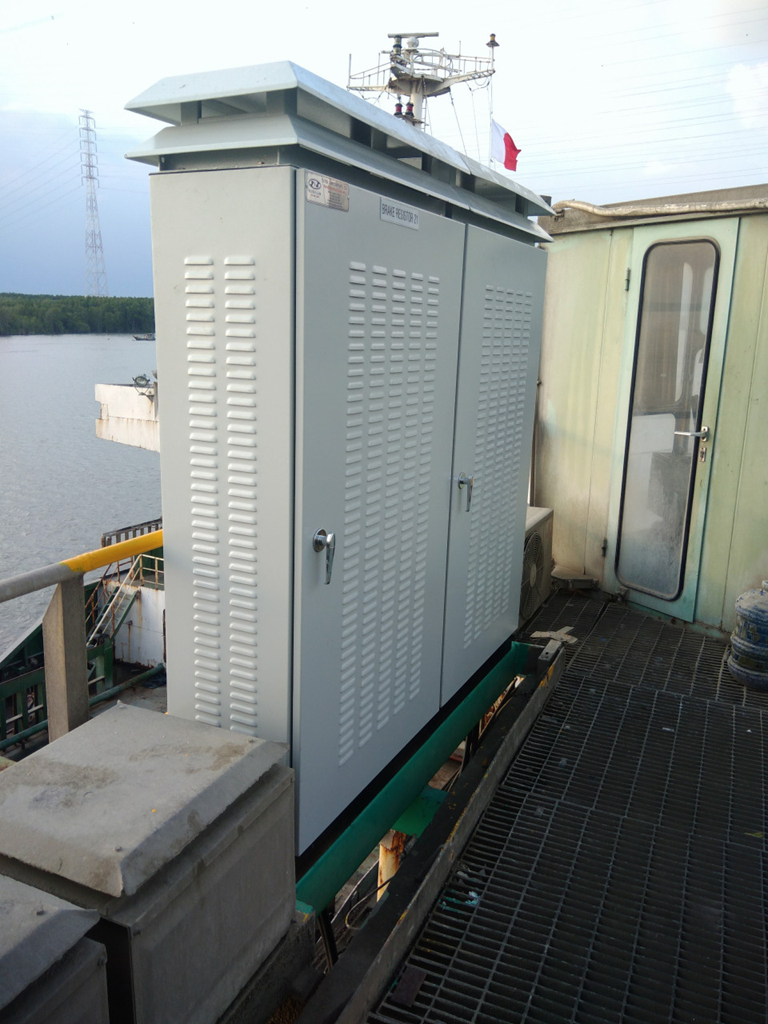

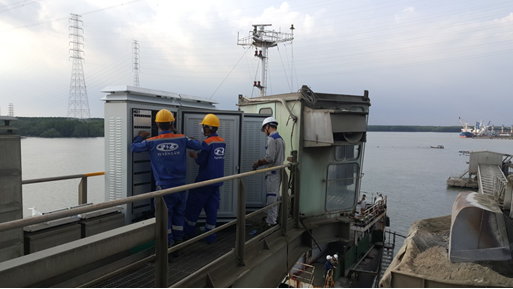

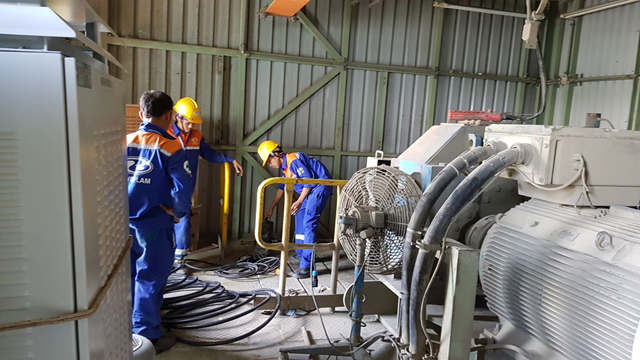

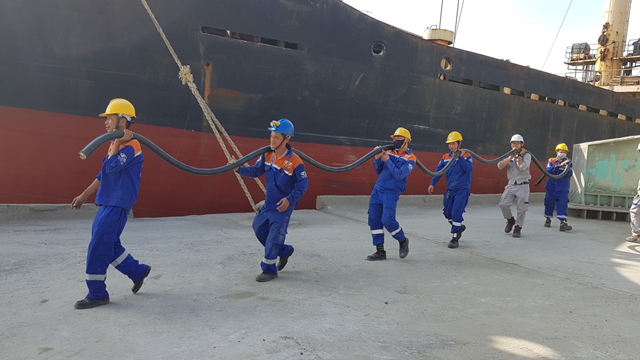

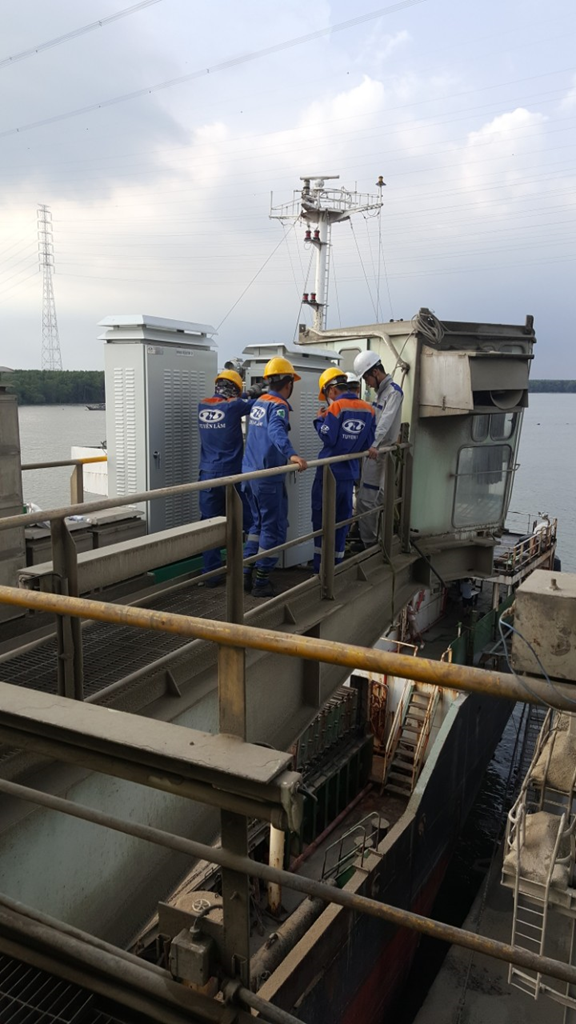

Install systems at the port

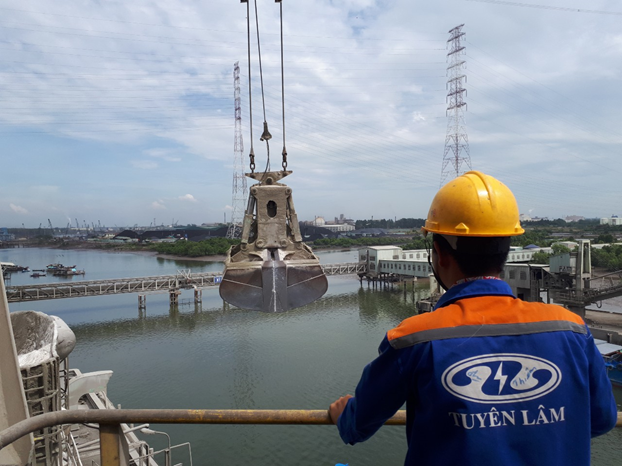

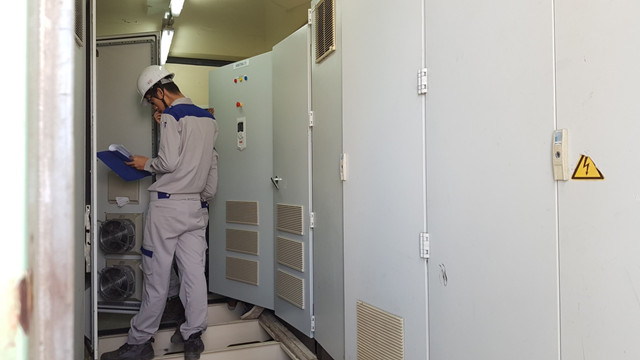

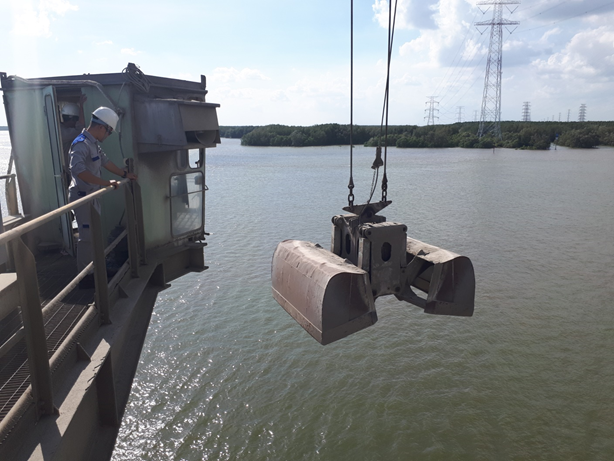

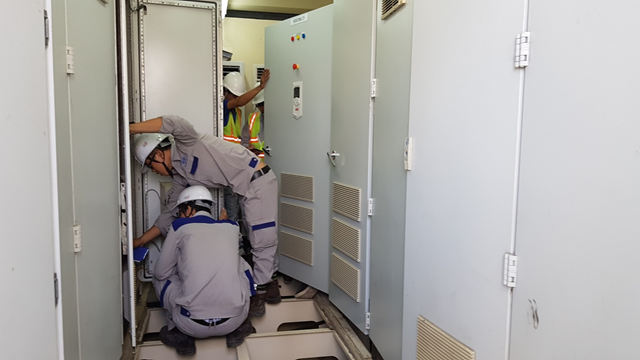

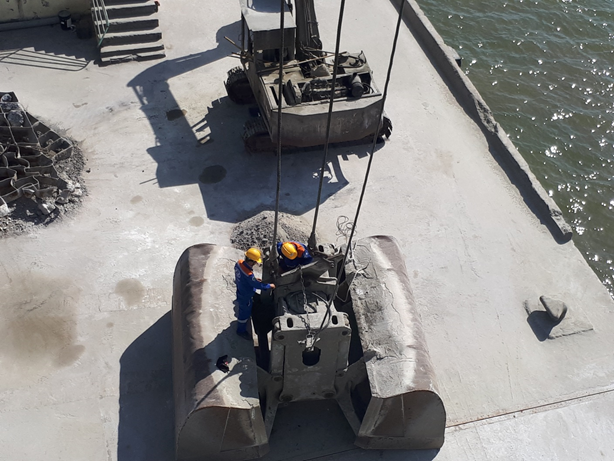

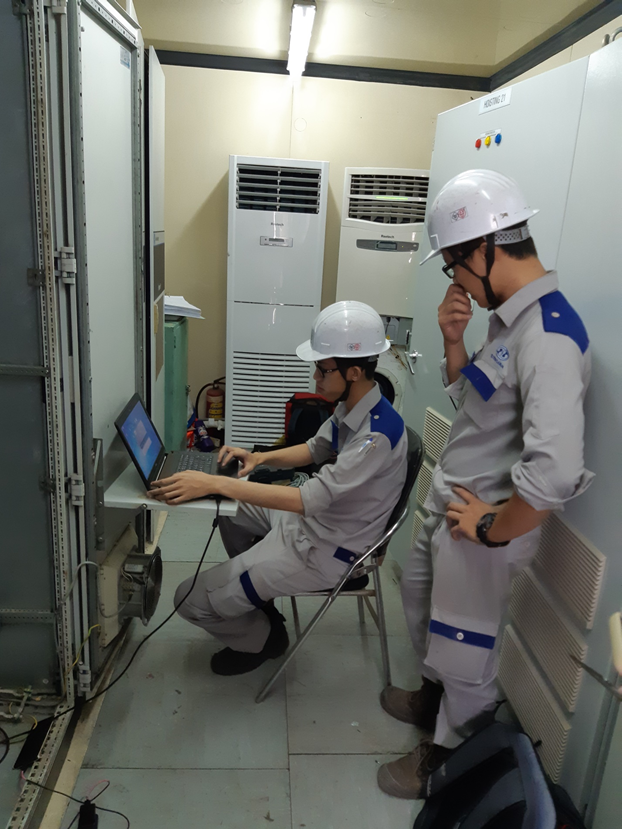

Testing and Commissioning activities
